静态路由AR配置

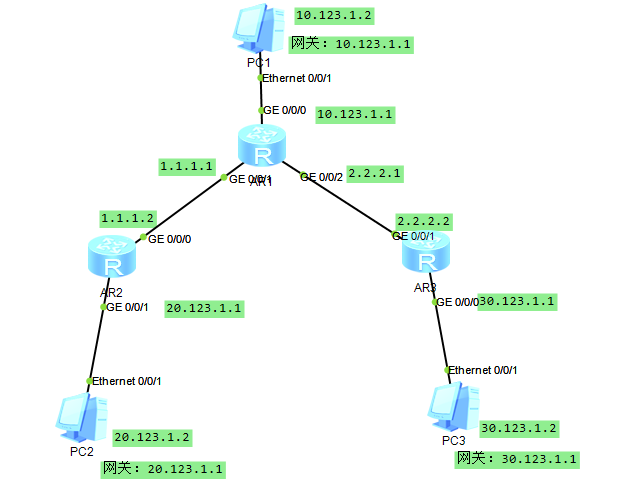

案例要求：需要不通网段的PC1与PC2、PC3主机分别ping通
准备：三台PC端主机、三台路由器(AR2220)
操作：

1. 配置PC端网络信息

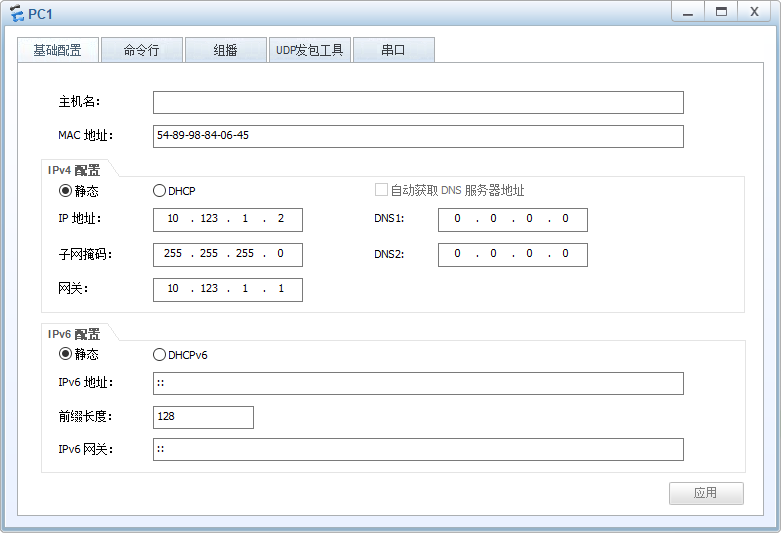

   PC1配置截图：

   注意：配置静态路由无需选择DHCP分配，需要自己设置的，这里的网关即下列步骤中的AR1的GE0的串口端ip
   PC2、PC3的配置同理
2. 配置路由器
   打开路由器AR1后配置：
   system-view #进入系统界面
   [Huawei]interface GigabitEthernet 0/0/0 # 进入G端口
   [Huawei-GigabitEthernet0/0/0]ip addr 10.123.1.1 24 # 配置G端口的IP地址和子网掩码
   [Huawei-GigabitEthernet0/0/0]quit # 返回上一界面
   [Huawei]interface GigabitEthernet 0/0/1
   [Huawei-GigabitEthernet0/0/1]ip addr 1.1.1.1 24
   [Huawei-GigabitEthernet0/0/1]quit
   [Huawei]ip route-static 20.123.1.0 24 1.1.1.2 # 配置添加静态路由信息，目标网络，掩码，下一跳
   [Huawei]interface GigabitEthernet 0/0/2 # 进入G端口
   [Huawei-GigabitEthernet0/0/2]ip addr 2.2.2.1 24 # 配置G端口的IP地址和子网掩码
   [Huawei-GigabitEthernet0/0/2]quit
   [Huawei] ip route-static 30.123.1.0 24 2.2.2.2

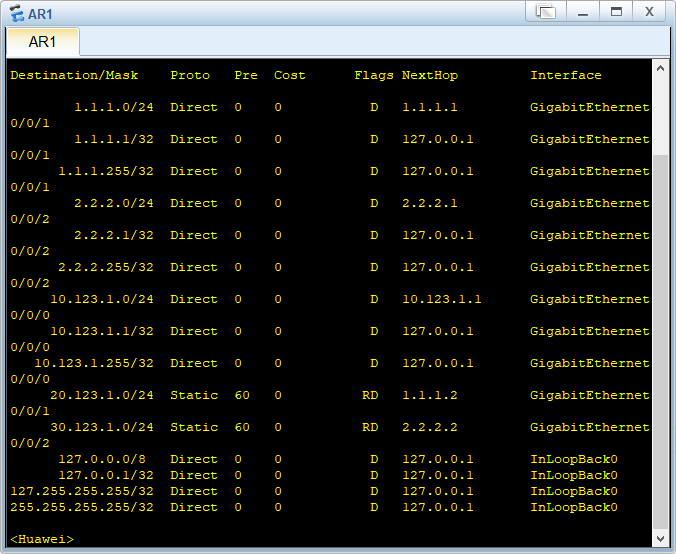

   查看路由表：

   其中static标识的就是咱们设置的静态地址路由
   配置AR2路由器：
   system-view
   [Huawei]interface GigabitEthernet 0/0/0
   [Huawei-GigabitEthernet0/0/0]ip addr 1.1.1.2 24
   [Huawei-GigabitEthernet0/0/0]quit
   [Huawei]interface GigabitEthernet 0/0/1
   [Huawei-GigabitEthernet0/0/1]ip addr 20.123.1.1 24
   [Huawei-GigabitEthernet0/0/1]quit
   [Huawei]ip route-static 10.123.1.0 30 1.1.1.1

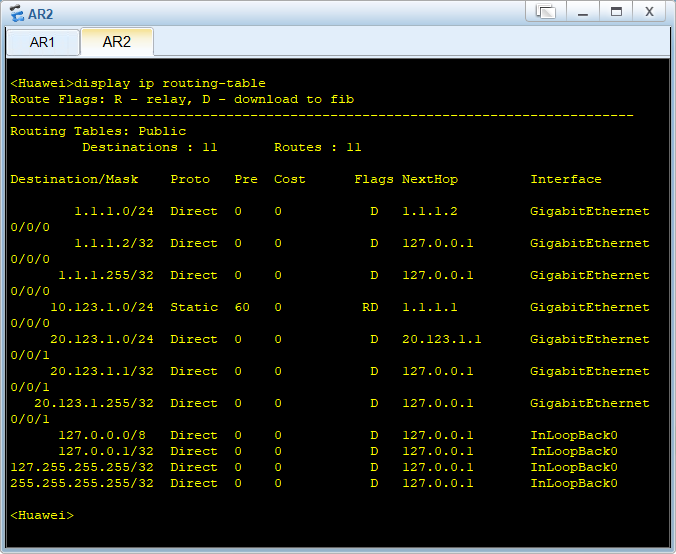

   查看AR2路由表：

   配置AR3路由器：
   system-view
   [Huawei]interface GigabitEthernet 0/0/0
   [Huawei-GigabitEthernet0/0/0]ip addr 30.123.1.1 24
   [Huawei-GigabitEthernet0/0/0]quit
   [Huawei]interface GigabitEthernet 0/0/1
   [Huawei-GigabitEthernet0/0/1]ip addr 2.2.2.2 24
   [Huawei-GigabitEthernet0/0/1]quit
   [Huawei]ip route-static 10.123.1.0 30 2.2.2.1

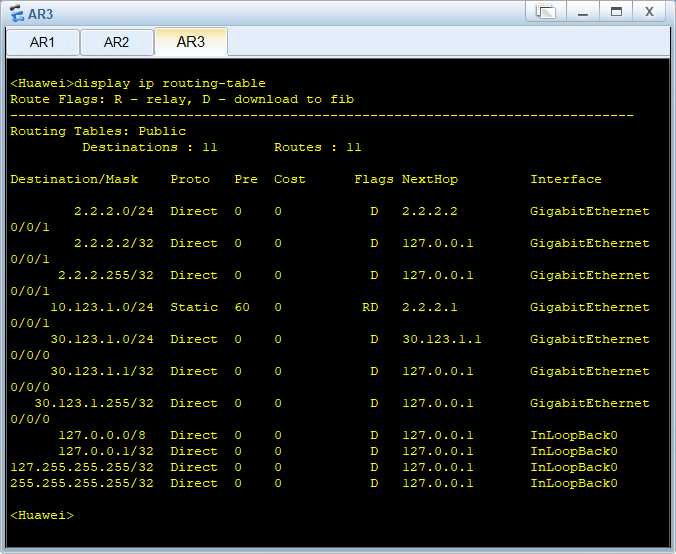

   查看AR3路由表：

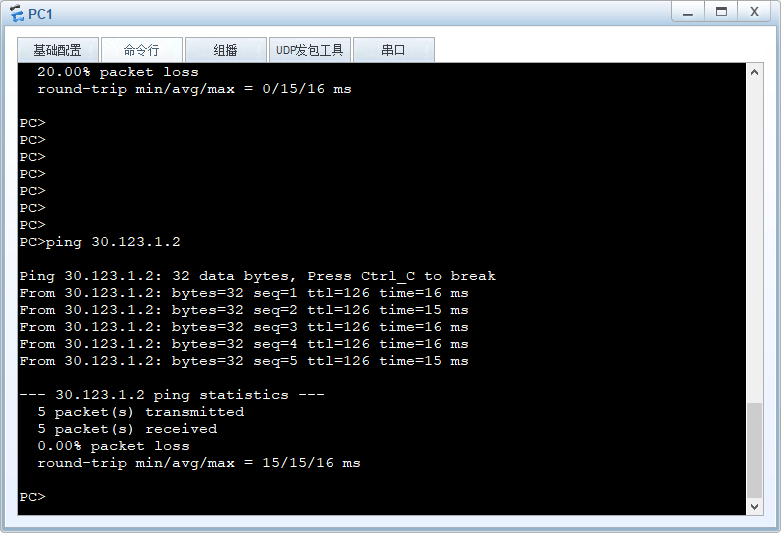

3. 测试路由



交换机switch配置三台静态路由

Switch1：
#
sysname S1
#
vlan batch 10 40 50
#
interface Vlanif40
ip address 10.1.4.2 255.255.255.252
#
interface Vlanif50
ip address 10.1.4.5 255.255.255.252
#
interface Vlanif10
ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 10
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 40
#
interface GigabitEthernet0/0/3
port link-type access
port default vlan 50
#
ip route-static 10.1.2.0 255.255.255.0 10.1.4.1
ip route-static 10.1.3.0 255.255.255.0 10.1.4.6
#
return

Switch2：
#
sysname S2
#
vlan batch 20 40
#
interface Vlanif40
ip address 10.1.4.1 255.255.255.252
#
interface Vlanif20
ip address 10.1.2.1 255.255.255.0
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 40
#
interface GigabitEthernet0/0/2
port link-type access
port default vlan 20
#
ip route-static 0.0.0.0 0.0.0.0 10.1.4.2
#
return

Switch3：
#
sysname S3
#
vlan batch 30 50
#
interface Vlanif50
ip address 10.1.4.6 255.255.255.252
#
interface Vlanif30
ip address 10.1.3.1 255.255.255.0
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 50
#
interface GigabitEthernet0/0/2
port link-type access
port default vlan 30
#
ip route-static 0.0.0.0 0.0.0.0 10.1.4.5
#
return

测试连通性(10.1.2.1 ping 10.1.3.1)
